TEHNIČKA SPECIFIKACIJA

Toplotna pumpa voda-voda
Model			CSFXRS-12II/A/S	CSFXRS-20II/A/S	CSFXRS-28II/A/S
Parametri
Rated heating capacity		kW	12.5	20	28
Rated power		kW	2.5	4.1	5.6
Rated current		A	4.7	7.4	10.5
Maximum power		kW	2.5	4.1	7.6
Maximum current		A	7.2	10.6	14.3
Rated hot water output temperature		Celsius Degree	55
Maximum hot water output temperature		Celsius Degree	60
Rated hot water produce capacity		L/H	172
Power supply			380 ~ 415V/50Hz
Expansion valve			Electronic Segamonia Japan
Compressor Sanyo Panasonic Japan	Type		C-SBN263H8D	C-SBN373H8D	C-SBN573H8D
	Model		Scroll type Sanyo Panasonic Japan
	Start mode		Direct
Use side exchanger	Type		Coaxial heat exchanger
	Water flow	m³/h	1.6	2.7	3.8
	Water pressure drop	kPa	<40
	Pipe size	DN	DN20	DN25
Protections			high and low pressure, anti-freezing, high temperature, safety valve, overload, lack and reverse phase, water flow etc. application side initial water temperature: 9...15 Celsius Degree, end temperature 55 Celsius Degree
Refrigerant	Type		R410A
Refrigerant	Weight	Kg	1.7	2.85	3.85
Noise [≤DB（A)]			52	55	58
Performance coefficient (~COP)			4.8	4.7	5.0
Unit dimensions	Length	mm	1000
	Width	mm	600
	Height	mm	590
Weight		Kg	75	93	128

Novo: 75°C Toplotna pumpa voda-voda
Model			WH8.5KW	WH14KW	WH19KW
Parametri
Rated heating capacity		kW	8.5	14	19
Rated power		kW	1.91	3.10	4.21
Rated current		A	3.56	5.77	7.92
Maximum power		kW	2.43	3.93	5.39
Maximum current		A	4.60	7.43	10.19
Rated hot water output temperature		Celsius Degree	70℃ Default do 80℃(adjustable)
Maximum hot water output temperature		Celsius Degree	80℃
Rated hot water produce capacity		L/H	172
Power supply			380 ~ 415V/50Hz
Expansion valve			Electronic Segamonia Japan
Compressor Hermetic scroll type	Quantity		1	1	1
	Model		Scroll type
	Start mode		Direct
Use side exchanger	Type		Coaxial heat exchanger
	Water flow	m³/h	1.5	2.4	3.3
	Water pressure drop	kPa	<40
	Pipe size	DN	DN20	DN25
Protections			high and low pressure, anti-freezing, high temperature, safety valve, overload, lack and reverse phase, water flow etc. application side initial water temperature: 9...15 Celsius Degree, end temperature 75 Celsius Degree
Refrigerant	Type		R134A
Refrigerant	Weight	Kg	2.2	3.3	4.2
Noise [≤DB（A)]			55	55	58
Performance coefficient (~COP)			4.47	4.56	4.51
Unit dimensions	Length	mm	1000
	Width	mm	600
	Height	mm	590
Weight		Kg	75	105	145

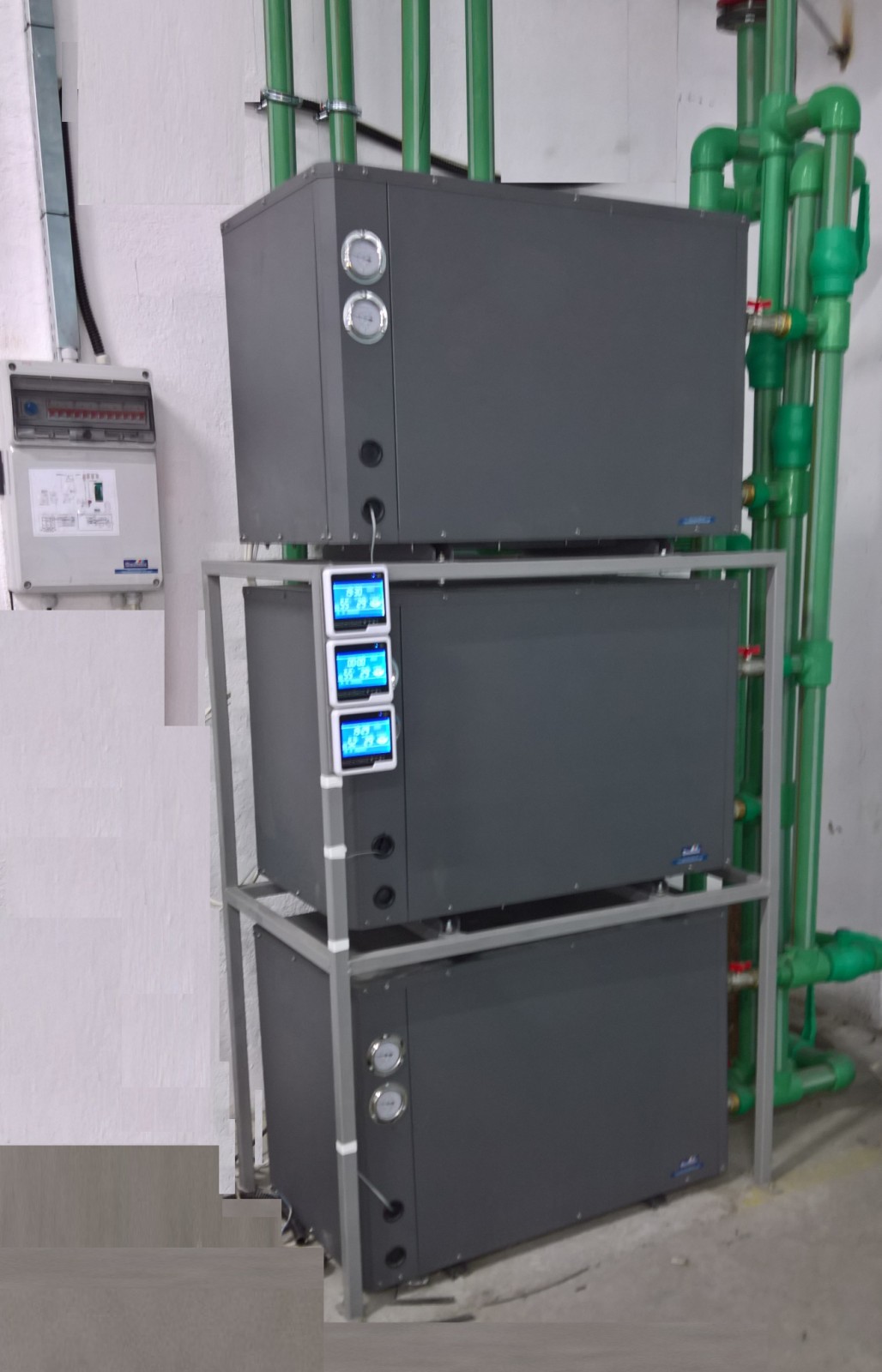

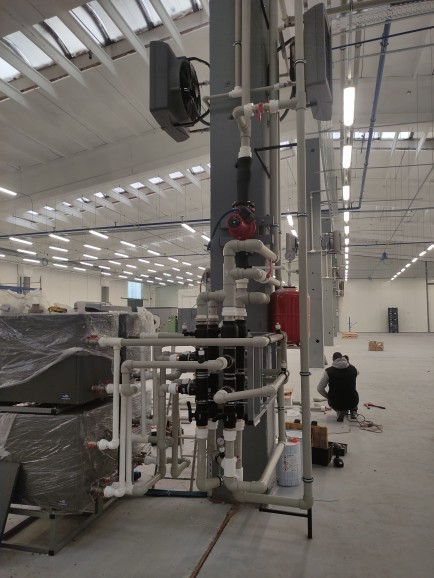

Modeli namenjeni za industriju, poslovne objekte i kolektivna stanovanja
